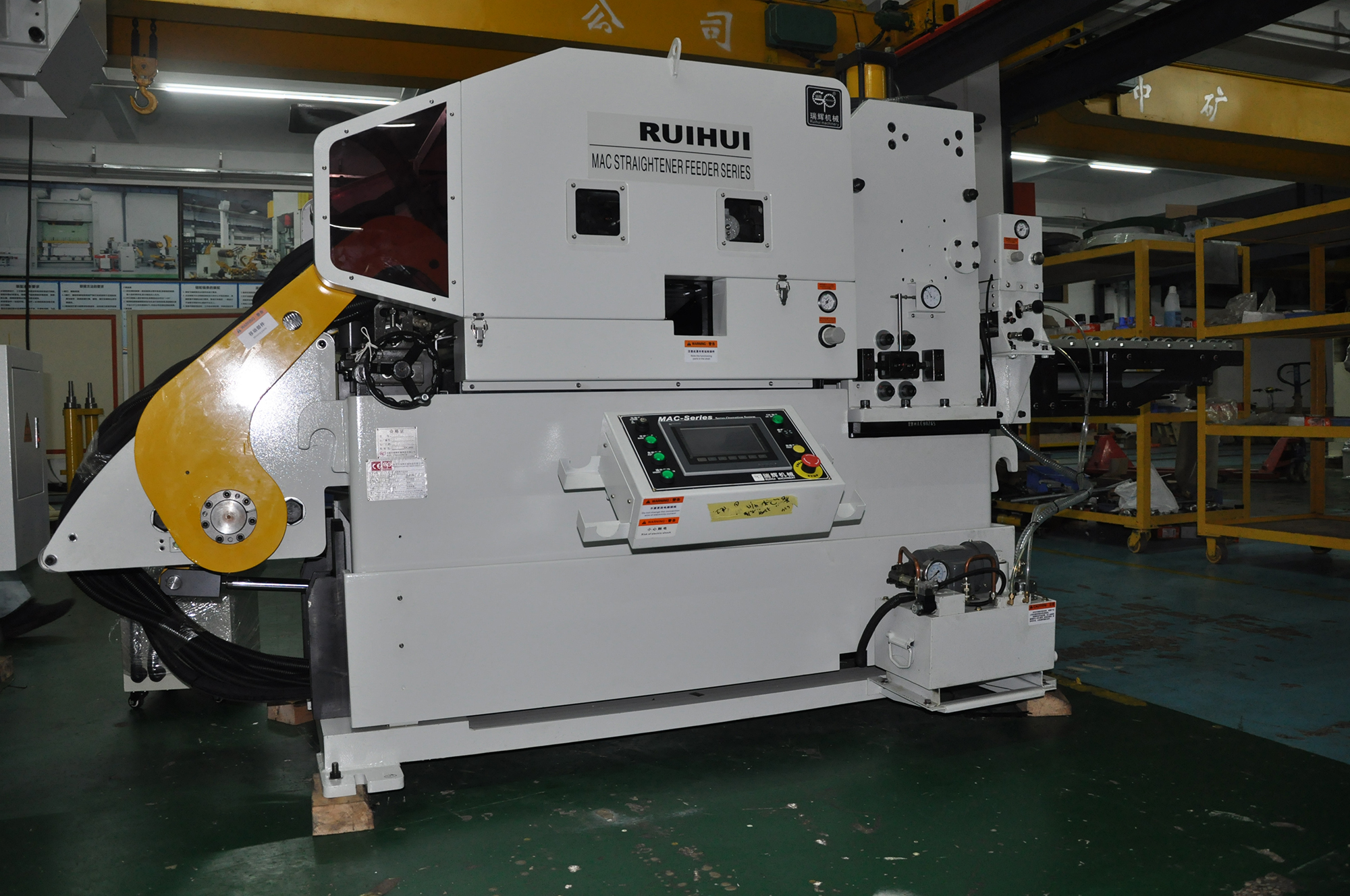

    Yaw NC Decoiler And Straightener Performance High Precision Feeding Equipment

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MAC4-400H
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Yaw NC Decoiler And Straightener Performance High Precision Feeding Equipment


    Yaw NC Decoiler And Straightener Performance High Precision Feeding Equipment


    The yaw feeder has two types of yaw air feeder and yaw NC feeder. The yaw air feeder is gradually eliminated by the market due to the high failure rate.


    The basics used today are all yaw NC feeders. Here, Ruihui Machinery will explain the applicable scope and characteristics of the yaw NC feeder.


    Application of yaw NC feeder: Ruihui yaw NC feeder is suitable for the processing of wafer blanking of steel, copper, aluminum, special alloy and bimetal.


    Applicable material thickness range is 0.3-3.0mm, suitable material width is 1800mm, and the maximum diameter of the cutting disc is 1000mm.


    Performance characteristics of the yaw NC feeder:


    1. Two-way alternating feeding, high output, maximizing material saving.


    The yaw NC feeder can be moved several times according to the diameter of the wafer blank to ensure round and cross-cutting, maximizing the utilization of materials.


    If the size of the blank is not equal, the arrangement angle can be automatically calculated to ensure maximum material saving.


    2. high-precision feeding, improve the precision of wafer cutting.


    A set of Mitsubishi PLC is used to control the electronic control system of two sets of Yaskawa servo motors. One servo motor system is connected with the feed roller by the synchronous pulley to achieve precise control of the feed roller.


    Another set of servo motor system is connected with Taiwan's Shangyin precision roller screw (standard equipped with Ruihui yaw NC feeder) with synchronous pulley to complete precise left and right movement.

    In the continuous stamping process, the minimum distance between the sides and the side can be set within 0.5mm, and the feeding error of the yaw feeder can be controlled within ±0.08MM to meet the increasingly high processing requirements.


    3. simple operation, high degree of automation.


    When the Ruihui yaw NC feeder is used, the control system of the NC feeder automatically calculates the movement and feeding after inputting the width of the material, the diameter of the required blank, and the feeding step on the 7-inch Weilun touch screen. distance.


    No need to adjust any mechanical mechanism, truly achieve full automation operation.


    Specification:


    ModelMAC4-400MAC4-600MAC4-800MAC4-1000MAC4-1300
    Stock Width(mm)70~40070~60070~80070~100070~1300
    Stock Thickness(mm)0.6~6.00.6~6.00.6~6.00.6~6.00.6~6.0
    Max.Coil Weight(kg)50005000700070007000
    Max.Coil O.D.(mm)14001400140014001400
    Coil I.D.(mm)508508508508508
    Feed Length(mm)~500*~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~2416~24
    Work Roll Number(piece)upper 4/lower 3upper 4/lower 3upper 4/lower 3upper 4/lower 3upper 4/lower 3
    Feed Roll number(set)11111
    Main MotorAC5.5AC7.5AC7.5AC11.0AC11.0
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)2.22.23.73.73.7
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.490.49


    Straightening Performance:


    ModelMAC4-400MAC4-600MAC4-80MAC4-1000MAC4-1300
    Stock Thickness
    (mm)
    0.6~1.340060080010001300
    2.0
    2.3
    2.51170
    2.8933933
    3.2714714714
    4.0457457457457
    4.5361361361361361
    5.0293293293293293
    6.0203203203203203



    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.


    Service:

    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
