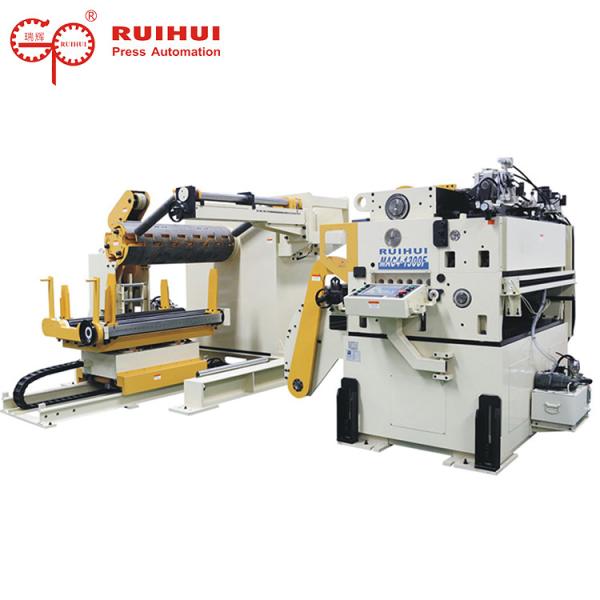

    Servo Motor Driven Decoiler Straightening Auto Feeder Horizontal Movement Power

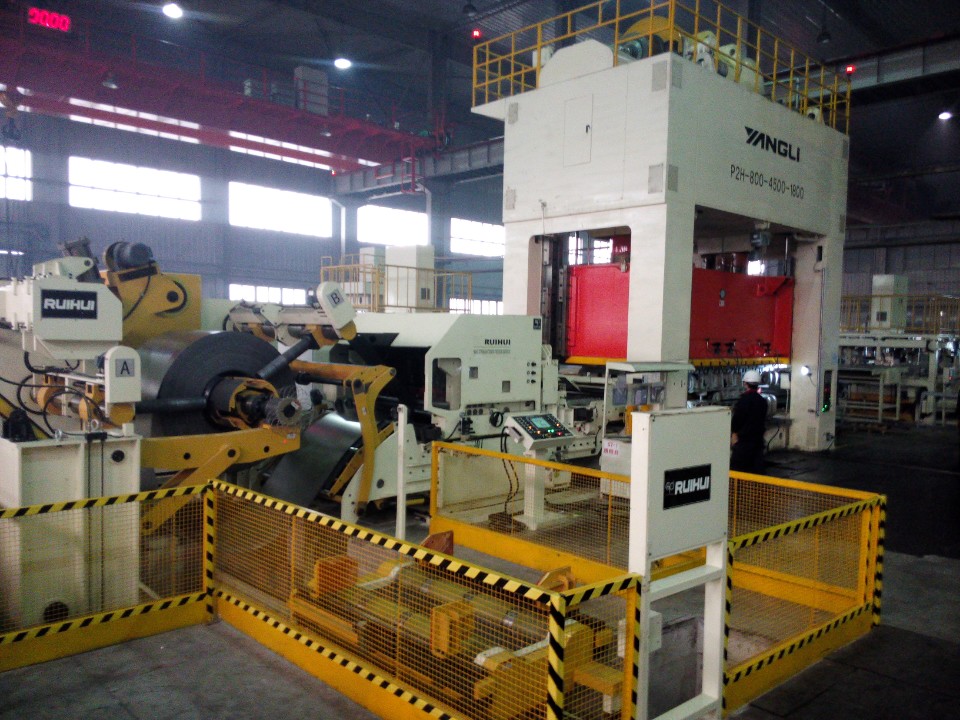

    Automatic Decoiler Straightener feeder using for power press or punching machine

    Automatic loading car
    The machine was used to load coils and automatically lift the coil to the mandrel of the decoiler machine. And then the mandrel can expand and clamp the coil.
    a) Loading capacity 5T
    b) Up-and-down movement power source Hydraulic
    c) Horizontal movement power source hydraulic motor
    d) Coil collapsing preventing fixing device 4set
    1.3 Straightener-Feeder
    a) Structure: Servo motor driven, synchronous belt transmission, gear transmission
    b) Servo motor and driver: Siemens AC380V 7KW
    c) Straightening roller: 9 (upper 5/down 4)
    d) straightening roller diameter:φ60mm
    e) Pinch roller: 2pcs
    f) Feeding roller: 2pcs
    All the roller material is GCr15, after quenched, high frequency annealing, the hardness is HRC58°-60°and then precision polishing.
    g) Gear: Material adopted 40Cr. The center quenched, teeth high frequency annealing and precision polishing.
    h) Straightening adjustment: worm screw adjustment, dial indicator display
    i) The entrance clamping roller: 2pcs
    j) Release type: pneumatic
    k) Feeding control: get signal from press encode or cam box, and controlled by PLC, HMI is touch screen.
    l) Material input guide roller: 1group (manual adjustment)
    m) Lubrication type: lubrication grease, manual grease bump lubrication
    n) Threading table device. It equipped with chrome-plated rollers and guided strips to go through the straightening part.
    o) Coil tip flatness device. It was mainly to press and flat coil head and end of the coil. Usually, the coil head is curvy, if without this device, the material is hard to go through the straightening part. But with this device, when the strips comes then entrance of the straightening part, the tip flatness device and press and flat the coil head and go through straightening device smoothly.
    p) Straightening manual adjustment wheel. The operator crank the manual handle to adjust the accuracy of the straightening part.
    q) Outgoing catenary to assistant support material device. It was mainly used to guide strips from straightening part to press machine.
    r) Manual control box. It was mainly used when coil run out and need to change a new coil and let the strips go though the straightening part at manual model.
    s) HMI. The operator operate the machine and set data in this device.
    t) Worm gear screw jacks device. It main used to adjust the pass line height. It was lifted the straightening part by a 0.75kw motor, easy to operate.
    u) Stop stock wheel manual adjust device. Crank the handle, the operator can adjust the distance between two stop stock wheels easily.


    Specifications:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Width(mm)70~60070~80070~100070~1300
    Stock Thickness(mm)0.6~6.00.6~6.00.6~6.00.6~6.0
    Max.Coil Weight(kg)50005000700010000
    Max.Coil O.D.(mm)1400140014001400
    Coil I.D.(mm)508508508508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~24
    Work Roll Number(piece)upper 6/lower 5upper 6/lower 5upper 6/lower 5upper 6/lower 5
    Feed Roll number(set)1111
    Main MotorAC7.5AC11.0AC11.0AC11.0
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)2.22.23.77.5
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straightening Performance:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Thickness
    (mm)
    0.8~2.360080010001300
    2.8933933
    3.2714714714
    4.0457457457457
    4.5361361361361
    5.0293293293293
    6.0203203203203
