    Automation Nc Servo Decoiler Straightener Feeder Uncoiler Hydrauilc

    Welcome OEM & ODM

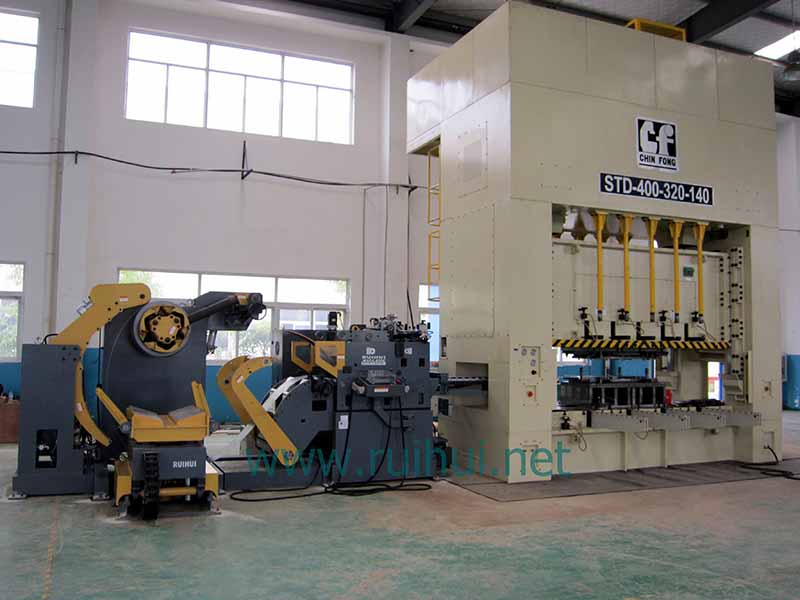

    Automation Machine Nc Servo Straightener Feeder and Uncoiler Make Material Straightening(MAC4-800F)


    This series nandles material form 600mm to 1,300mm wide and up to 6.0mm thick. The 11 work rolls offer an extraordinary level of flatness to the materials. The HL series featured that adapting all rolls driven with universal joint (MAC4-F) and strengthen body flame for straightening high tension materials. A straightener port opening mechanism has been added. allowing for improved maintenance and cleaning the rolls. The HL series underwent a new model for meeting the demand of both productivity and efficiency in pressroom.

    1.Easy Access to Work Rolls:
    The work rolls on the HL can be opened to a maximum of 20 degrees,making roll cleaning much easier,The machine was designed to allow easy access to the inside structure for improved maintenance.

    2.Coil Material Entry Support Assembly:
    Save Man Power Increase Safety, Easily move the material into pinch rollers.

    Specifications

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Width(mm)70~60070~80070~100070~1300
    Stock Thickness(mm)0.6~6.00.6~6.00.6~6.00.6~6.0
    Max.Coil Weight(kg)50005000700010000
    Max.Coil O.D.(mm)1400140014001400
    Coil I.D.(mm)508508508508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~24
    Work Roll Number(piece)upper 6/lower 5upper 6/lower 5upper 6/lower 5upper 6/lower 5
    Feed Roll number(set)1111
    Main MotorAC7.5AC11.0AC11.0AC11.0
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)2.22.23.77.5
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straightening Performance:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Thickness
    (mm)
    0.8~2.360080010001300
    2.8933933
    3.2714714714
    4.0457457457457
    4.5361361361361
    5.0293293293293
    6.0203203203203
