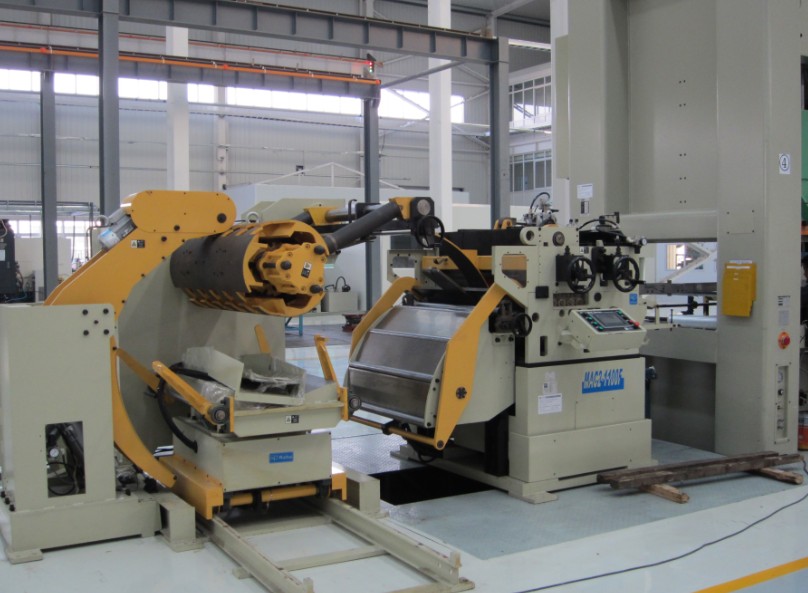

High Precision Leveler Cum Decoiler And Straightener For Metal Sheet

    Buy cheap High Precision Leveler Cum Decoiler And Straightener For Metal Sheet from wholesalers

    Buy cheap High Precision Leveler Cum Decoiler And Straightener For Metal Sheet from wholesalers
    • Buy cheap High Precision Leveler Cum Decoiler And Straightener For Metal Sheet from wholesalers
    • Buy cheap High Precision Leveler Cum Decoiler And Straightener For Metal Sheet from wholesalers

    High Precision Leveler Cum Decoiler And Straightener For Metal Sheet

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MAC2-1100F
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    High Precision Leveler Cum Decoiler And Straightener For Metal Sheet

    High Precision Leveler Cum Decoiler Straightener Feeder For Metal Sheet


    Optional Equipments and Devices:

    • For uncoiler part
    1. coil cart
    2. press arm
    3. feeding arm
    4. hold arm
    5. hydraulic expansion
    6. Automatic Uncoiling

    • For Straightener part
    1. phneumatic auto control or manual control
    • For Feeder part
    1. oil printing device
    2. cutter
    3. expanding feeds



    Specification:


    ItemMAC2-600FMAC2-800FMAC2-1000FMAC2-1100FMAC2-1300FMAC2-1400FMAC2-1500FMAC2-1600F
    Stock Width(mm)75-60075-80075-100075-110075-130075-140075-150075-1600
    Stock Thickness(mm)0.3-3.20.3-3.20.3-3.20.3-3.20.3-3.20.3-3.20.3-3.20.3-3.2
    Max.Coil Weight(kg)50005000500050005000500050005000
    Max.Coil O.D.(mm)15001500150015001500150015001500
    Coil I.D.(mm)508508508508508508508508
    Max.Line Speed(m/min)16-2416-2416-2416-2416-2416-2416-2416-24
    Feed Accuracy(mm)±0.15±0.15±0.15±0.15±0.15±0.15±0.15±0.15
    Feed Rollup 1 /down 1up 1 /down 1up 1 /down 1up 1 /down 1up 1 /down 1up 1 /down 1up 1 /down 1up 1 /down 1
    Work Rollup 4 /down 3up 4 /down 3up 4 /down 3up 4 /down 3up 4 /down 3up 4 /down 3up 4 /down 3up 4 /down 3
    Back pressure Rollprovidedprovidedprovidedprovidedprovidedprovidedprovidedprovided
    Main Motor(kw)AC7.5AC7.5AC7.5AC7.5AC7.5AC7.5AC11.0AC11.0
    Uncoil Motor(kw)AC2.2AC2.2AC2.2AC2.2AC2.2AC2.2AC2.2AC2.2
    Mandrel Expansionhydraulichydraulichydraulichydraulichydraulichydraulichydraulichydraulic
    Air Supply(kg/cm2)5kg/cm²5kg/cm²5kg/cm²5kg/cm²5kg/cm²5kg/cm²5kg/cm²5kg/cm²
    Power(v)3 Phase 220V/380V/50HZ


    Straigtening performance:


    Model/Width/Thickness0.30.60.81.01.21.41.61.82.02.32.83.2
    MAC2-600F600630
    MAC2-800F800600
    MAC2-1000F1000610380280
    MAC2-1100F1100600420270210
    MAC2-1300F1300780540410330250165130
    MAC2-1400F1400850600450340270200130100
    MAC2-1500F1500100070045035028022016011090
    MAC2-1600F160014008005203803002301501309070


    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.


    Service:

    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.



    Why choose us?
    1st,We have a high level of technical research and development team;
    2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
    3rd, our philosophy: quality is the social responsibility;
    4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
    5th,We have a highly effective after-sales service team and get customer approval.
