    Stamping Equipment Punch Uncoiler Straightener Feeder For Blanking Machine

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MAC3-400
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Stamping Equipment Punch Uncoiler Straightener Feeder For Blanking Machine

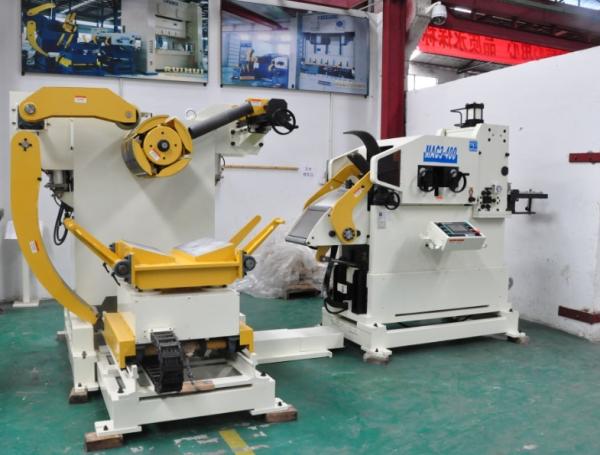

    Stamping Equipment Punch Decoiler Straightener Feeder For Blanking Machine


    Machine main features:

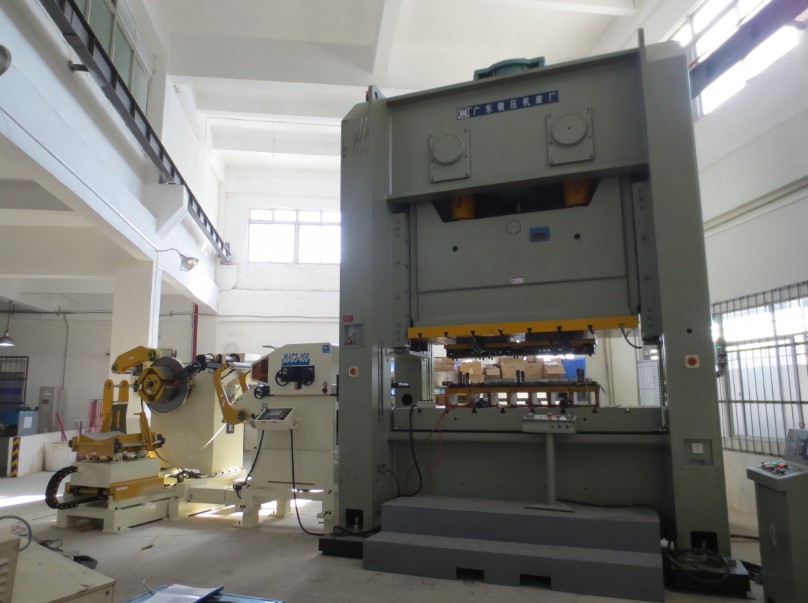

    A automatic equipment in high speed feeding coil for punch press. The machine is feeding levelling with uncoiling for steel coil.


    The 3 in 1 straightener&feeder with decoiler whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi.


    This decoiler straightener feeding line can help to improve efficiency, lower cost and ensure quality. TNCF series has won wide market with its high performance and low price.


    The thickness of material can be from 0.2MM to 8MM, width from 150MM to 1600MM, highest precision ±0.15MM and speed 16M/min.


    This decoiler machine is applicable for processing of copper coil, aluminum coil, cold-rolled coil, hot rolled material, silicon steel, and stainless steel and so on.

    Specification:


    ModelMAC3-400MAC3-600MAC3-800MAC3-1000
    Stock Width(mm)0~40050~60070~80070~1000
    Stock Thickness(mm)0.3~4.50.3~4.50.3~4.50.3~4.5
    Max.Coil Weight(kg)50005000500070007000
    Max.Coil O.D.(mm)Φ1400Φ1400Φ1400Φ1400
    Coil I.D.(mm)Φ508Φ508Φ508Φ508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~24
    Work Roll Number(piece)up 4 / down 3up 4 / down 3up 4 / down 3up 4 / down 3
    Feed Roll number(set)1111
    Main MotorAC4.4AC4.4AC5.5C7.5
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)2.22.22.23.73.7
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straightening Performance:


    ModelMAC3-400MAC3-600MAC3-800MAC3-1000
    Stock Thickness
    (mm)
    0.3~0.84006008001000
    1.0750
    1.2700600
    1.6590480430
    1.8500420380
    2.0430370330
    2.3360320290
    2.8370290250230
    3.2300250220200
    4.5160160150110

    *The avove flgures are the material having yield strength of 245N/mm2 max.



    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.


    Service:

    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.



    Why choose us?
    1st,We have a high level of technical research and development team;
    2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
    3rd, our philosophy: quality is the social responsibility;
    4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
    5th,We have a highly effective after-sales service team and get customer approval.
