    Nc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing Machine

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MAC4-600
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

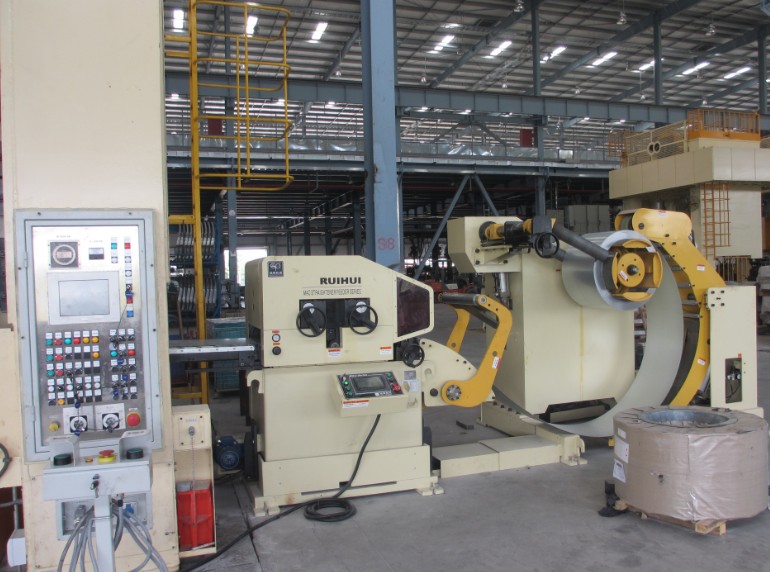

    Nc Servo Sheet Metal Steel Coil Feeder Straightener For Pressing Machine

    Pressing Machine Nc Servo Sheet Metal Steel Coil Decoiler Straightener Feeder


    Feeding features
    1. NC Servo feeding. Operating with Computerize Numerical Control by PLC program from MITSUBISHI made in Japan. The electrical parts from YASKAWA made in Japan including Servo motor, driver, encoder, interface screen and so on.
    2. High precision feeding: to meet the coming of hi-tech industry, controlled by computer closed circuit feedback system to keep precision degree within +/-0.5mm
    3. Feeding function: input 20 sets of different feed length, each group provides 999 times for punching or cutting to satisfy processing of special products.
    4. High efficiency release device, match with adjustment of signal from the cutter or press machine through cable wire.
    5. Setting of feed length: directly input feed length on the control plate, and then it can reach needed distance, feed length max 9999.99mm. speed max 100m/min

    Specification:


    ModelMAC4-400MAC4-600MAC4-800MAC4-1000MAC4-1300
    Stock Width(mm)70~40070~60070~80070~100070~1300
    Stock Thickness(mm)0.6~6.00.6~6.00.6~6.00.6~6.00.6~6.0
    Max.Coil Weight(kg)50005000700070007000
    Max.Coil O.D.(mm)14001400140014001400
    Coil I.D.(mm)508508508508508
    Feed Length(mm)~500*~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~2416~24
    Work Roll Number(piece)upper 4/lower 3upper 4/lower 3upper 4/lower 3upper 4/lower 3upper 4/lower 3
    Feed Roll number(set)11111
    Main MotorAC5.5AC7.5AC7.5AC11.0AC11.0
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)2.22.23.73.73.7
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.490.49


    Straightening Performance:


    ModelMAC4-400MAC4-600MAC4-80MAC4-1000MAC4-1300
    Stock Thickness
    (mm)
    0.6~1.340060080010001300
    2.0
    2.3
    2.51170
    2.8933933
    3.2714714714
    4.0457457457457
    4.5361361361361361
    5.0293293293293293
    6.0203203203203203


    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.


    Service:


    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
